Worked example · One workshop day

Portable workshop day: grinder, battery charger and lights

A transparent one-day energy and output budget for intermittent grinding, cordless-tool charging and task lighting away from a fixed outlet.

3 device types25% extra energy marginWithout recharging

Quick answer

Battery target for 1 day

1,563Wh

Stated battery capacity, including a 25% extra energy margin on demand and 80% usable energy.

Adjust this example

This illustrative day uses about 1,000Wh, but energy is not the difficult part. With the listed loads overlapping, the planner asks for 2,575W at the largest start event; the exact tool and station still need a real startup test.

Energy per day: 1,000 Wh
Power check: 1,375 / 2,575 W
Solar target: 350 W

Solar is a separate estimate. The battery target is calculated without intermediate recharging.

Shortlist first

Stations to compare first

We check both battery size and whether the station can handle the load. Solar compatibility is still a separate check.

5 of 19 meet the target

First models that meet both the battery and power target, then the longest calculated coverage. No ranking on price or portability.

Photo: EU versionEcoFlow ↗

EcoFlow

DELTA Pro 3

4,096 Wh · 4,000 W continu

Meets the target

View this model

Why this outcome?

Usable battery · 80%: 3,277 Wh
Coverage without extra margin: 3.3 days
Battery target with extra margin: Met
Power target: Met
Solar input · watt limit: 2,600 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Anker SOLIX

F3800

3,840 Wh · 6,000 W continu

Meets the target

View this model

Why this outcome?

Usable battery · 80%: 3,072 Wh
Coverage without extra margin: 3.1 days
Battery target with extra margin: Met
Power target: Met
Solar input · watt limit: 2,400 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Anker SOLIX

F3000

3,072 Wh · 3,600 W continu

Meets the target

View this model

Why this outcome?

Usable battery · 80%: 2,458 Wh
Coverage without extra margin: 2.5 days
Battery target with extra margin: Met
Power target: Met
Solar input · watt limit: 2,400 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

View all 19 models

Photo: EU versionJackery ↗

Jackery

Explorer 3000 v2

3,072 Wh · 3,600 W continu

Meets the target

View this model

Why this outcome?

Usable battery · 80%: 2,458 Wh
Coverage without extra margin: 2.5 days
Battery target with extra margin: Met
Power target: Met
Solar input · watt limit: 1,000 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Photo: EU versionJackery ↗

Jackery

Explorer 2000 Plus

2,043 Wh · 3,000 W continu

Meets the target

View this model

Why this outcome?

Usable battery · 80%: 1,634 Wh
Coverage without extra margin: 1.6 days
Battery target with extra margin: Met
Power target: Met
Solar input · watt limit: 1,400 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Photo: EU versionEcoFlow ↗

EcoFlow

DELTA 2 Max

2,048 Wh · 2,400 W continu

Power target not met

View this model

Why this outcome?

Usable battery · 80%: 1,638 Wh
Coverage without extra margin: 1.6 days
Battery target with extra margin: Met
Power target: Not met
Solar input · watt limit: 1,000 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Photo: EU versionBLUETTI ↗

BLUETTI

AC200L

2,048 Wh · 2,400 W continu

Power target not met

View this model

Why this outcome?

Usable battery · 80%: 1,638 Wh
Coverage without extra margin: 1.6 days
Battery target with extra margin: Met
Power target: Not met
Solar input · watt limit: 1,200 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Photo: EU versionJackery ↗

Jackery

Explorer 2000 v2

2,042 Wh · 2,200 W continu

Power target not met

View this model

Why this outcome?

Usable battery · 80%: 1,634 Wh
Coverage without extra margin: 1.6 days
Battery target with extra margin: Met
Power target: Not met
Solar input · watt limit: 400 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Photo: EU versionBLUETTI ↗

BLUETTI

AC180

1,152 Wh · 1,800 W continu

Power target not met

View this model

Why this outcome?

Usable battery · 80%: 922 Wh
Coverage without extra margin: 0.9 days
Battery target with extra margin: Not met
Power target: Not met
Solar input · watt limit: 500 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Photo: EU versionJackery ↗

Jackery

Explorer 1000 v2

1,070 Wh · 1,500 W continu

Power target not met

View this model

Why this outcome?

Usable battery · 80%: 856 Wh
Coverage without extra margin: 0.9 days
Battery target with extra margin: Not met
Power target: Not met
Solar input · watt limit: 400 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Anker SOLIX

C1000

1,056 Wh · 1,800 W continu

Power target not met

View this model

Why this outcome?

Usable battery · 80%: 845 Wh
Coverage without extra margin: 0.8 days
Battery target with extra margin: Not met
Power target: Not met
Solar input · watt limit: 600 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Photo: EU versionEcoFlow ↗

EcoFlow

DELTA 2

1,024 Wh · 1,800 W continu

Power target not met

View this model

Why this outcome?

Usable battery · 80%: 819 Wh
Coverage without extra margin: 0.8 days
Battery target with extra margin: Not met
Power target: Not met
Solar input · watt limit: 500 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Photo: EU versionEcoFlow ↗

EcoFlow

DELTA 3 Plus

1,024 Wh · 1,800 W continu

Power target not met

View this model

Why this outcome?

Usable battery · 80%: 819 Wh
Coverage without extra margin: 0.8 days
Battery target with extra margin: Not met
Power target: Not met
Solar input · watt limit: 1,000 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Photo: EU versionDJI ↗

DJI

Power 1000

1,024 Wh · 2,200 W continu

Power target not met

View this model

Why this outcome?

Usable battery · 80%: 819 Wh
Coverage without extra margin: 0.8 days
Battery target with extra margin: Not met
Power target: Not met
Solar input · watt limit: 800 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Anker SOLIX

C1000 Gen 2

1,024 Wh · 2,000 W continu

Power target not met

View this model

Why this outcome?

Usable battery · 80%: 819 Wh
Coverage without extra margin: 0.8 days
Battery target with extra margin: Not met
Power target: Not met
Solar input · watt limit: 600 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Photo: EU versionBLUETTI ↗

BLUETTI

Elite 100 V2

1,024 Wh · 1,800 W continu

Power target not met

View this model

Why this outcome?

Usable battery · 80%: 819 Wh
Coverage without extra margin: 0.8 days
Battery target with extra margin: Not met
Power target: Not met
Solar input · watt limit: 1,000 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Photo: EU versionEcoFlow ↗

EcoFlow

RIVER 3 Max Plus

858 Wh · 600 W continu

Power target not met

View this model

Why this outcome?

Usable battery · 80%: 686 Wh
Coverage without extra margin: 0.7 days
Battery target with extra margin: Not met
Power target: Not met
Solar input · watt limit: 220 W · too low

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Photo: EU versionBLUETTI ↗

BLUETTI

AC70

768 Wh · 1,000 W continu

Power target not met

View this model

Why this outcome?

Usable battery · 80%: 614 Wh
Coverage without extra margin: 0.6 days
Battery target with extra margin: Not met
Power target: Not met
Solar input · watt limit: 500 W · sufficient

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

Anker SOLIX

C800

768 Wh · 1,200 W continu

Power target not met

View this model

Why this outcome?

Usable battery · 80%: 614 Wh
Coverage without extra margin: 0.6 days
Battery target with extra margin: Not met
Power target: Not met
Solar input · watt limit: 300 W · too low

Calculated solar lower bound: 333.3 W. The overview rounds this up to 50 W.

A watt limit does not prove a panel fits. Also check voltage, current, connectors and the regional version.

Check solar panel

What is included

The devices in this example

These are sensible starting values. Change the hours and exact devices in the planner to make the answer yours.

Adjust devices

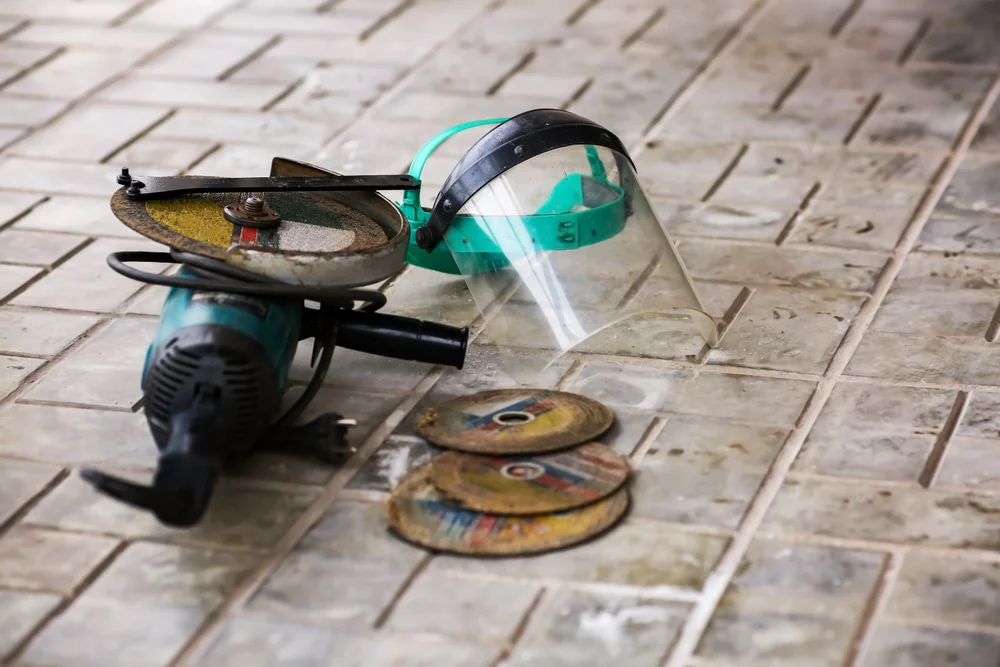

Angle grinder — active cutting
600 Wh per day
Average consumption
1,200 W
Entered peak
2,400 W
Hours per day
0.5 hours
Quantity
1
Cordless-tool battery charger
300 Wh per day
Average consumption
150 W
Entered peak
250 W
Hours per day
2 hours
Quantity
1
LED task lights
100 Wh per day
Average consumption
25 W
Entered peak
25 W
Hours per day
4 hours
Quantity
1

Total for one day1,000 Wh

Useful tip 1

Trigger time is not elapsed job time

A half-hour of cutting can be spread across a much longer work session. Record actual trigger-on minutes rather than counting every hour spent at the site.

Useful tip 2

Start behavior is the hard boundary

Blade load, extension leads, motor design and inverter response all affect a start. A wattage comparison narrows candidates; it does not certify the pairing.

Calculation detailsSee the assumptions behind this answer

The angle grinder averages 1,200W for 30 minutes of actual trigger-on time
One battery charger averages 150W for two hours
Task lights draw 25W for four hours
The planner conservatively allows the charger and lights to remain on when the grinder starts

How the battery target is formed

1,000 Wh per day × 1 day × 1.25 ÷ 0.8 ≈ 1,563 Wh

The daily consumption above is rounded for display. The calculation uses unrounded values. The factor is 1 + the extra energy margin, added to demand rather than kept as battery charge; the 80% usable-energy allowance is a separate factor.

SourcesSee manuals and supporting guides

Fluke motor-inrush technical note↗OSHA hand and power tools guidance↗Your Power Setup circular-saw guide→Your Power Setup air-compressor guide→

Battery target for 1 day

Stations to compare first

DELTA Pro 3

F3800

F3000

Explorer 3000 v2

Explorer 2000 Plus

DELTA 2 Max

AC200L

Explorer 2000 v2

AC180

Explorer 1000 v2

C1000

DELTA 2

DELTA 3 Plus

Power 1000

C1000 Gen 2

Elite 100 V2

RIVER 3 Max Plus

AC70

C800

The devices in this example

Angle grinder — active cutting

Cordless-tool battery charger

LED task lights

Trigger time is not elapsed job time

Start behavior is the hard boundary

How the battery target is formed

Continue with another setup
